A student pulls a memory stick out of an old desktop, stares at it next to one from a laptop, and has no idea which generation either one actually is.
That confusion is the whole point of a lab like this one. Memory modules look similar at a glance, but small physical details tell you exactly what you’re holding.
Guess wrong on an exam, or worse, in a real repair job, and a mismatched stick either won’t fit the slot or, in rare cases, damages the board when forced in.
Software tools can confirm memory type on a running system, but a tech pulling a stick from a dead machine, or prepping for a hands-on exam, needs to read the hardware itself.
This lab guide walks through the physical and electrical markers that identify memory technology, so a stick can be sorted correctly by sight alone.
Advanced Hardware Lab 3 3 Identify Memory Technologies

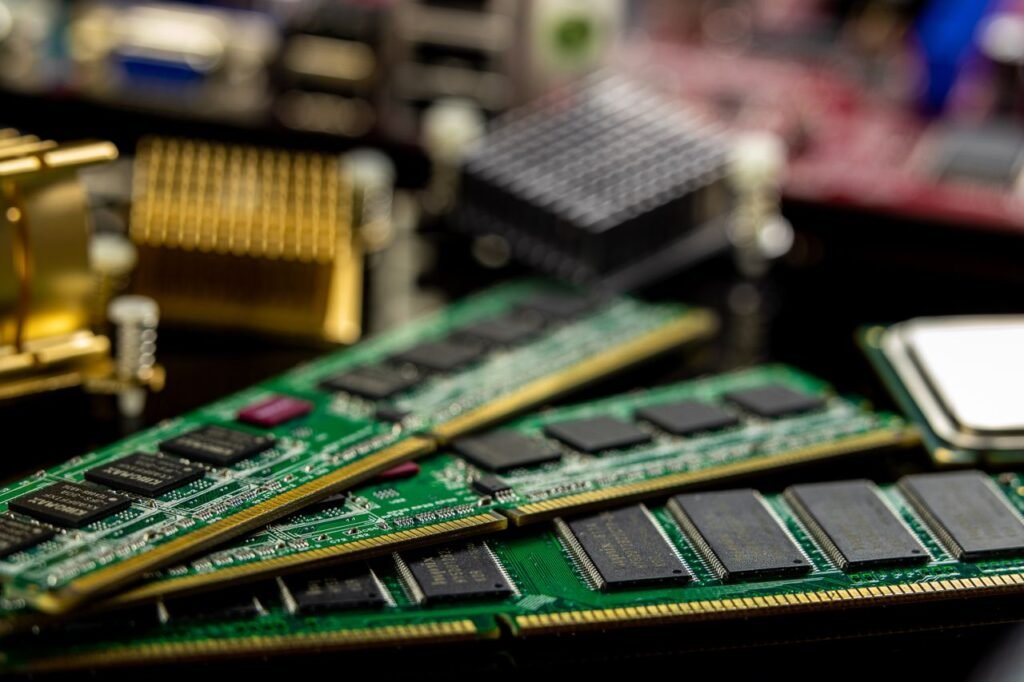

Every memory module carries a small set of physical clues that reveal its generation, form factor, and intended system, once you know where to look.
Four markers matter most: pin count and notch position, physical size, voltage and power delivery hardware, and printed markings for buffering and error correction.
Reading these together, rather than relying on any single clue alone, is what separates a confident identification from a guess.
Pin Count and Notch Position
The notch, a small gap cut into the row of gold contacts, is the fastest way to rule out entire generations of memory at a glance.
DDR3 modules place that notch clearly off-center, roughly a third of the way from the left edge, which is easy to spot without measuring anything.
DDR4 shifts the notch closer to center, and DDR5 shifts it again to a slightly different position, which is why a DDR5 stick physically cannot seat in a DDR4 slot.
Pin count backs up the notch position as a second check: desktop DDR4 modules carry 288 pins, while laptop DDR4 SO-DIMMs carry 260 pins, and DDR5 modules in both form factors also use 288 and 262 pins, respectively.
Physical Size and Form Factor
Full-size DIMMs, built for desktops and servers, run noticeably longer than SO-DIMMs, which are built for laptops and compact systems.
A SO-DIMM measures roughly half the length of a standard DIMM, a size difference visible immediately even before checking pin count or notch position.
Newer CAMM2 modules break from this pattern entirely, using a flat, low-profile connector instead of the traditional edge-contact design, developed originally by Dell before becoming a broader industry standard.
Voltage and Power Delivery Clues
Voltage requirements dropped with almost every DDR generation, and that drop left physical traces a technician can actually spot on the board.
DDR3 modules typically run at 1.5 volts, DDR4 drops to 1.2 volts, and DDR5 drops further still to around 1.1 volts, each change driven by tighter power efficiency demands.
DDR5 introduced a visible hardware change tied to this shift too: a small rectangular power management chip mounted directly on the module, something no DDR4 stick carries, since DDR4 draws its power conversion from the motherboard instead.
Spotting that chip on the module itself is one of the fastest ways to confirm DDR5 without needing to check pin count or notch position at all.
Buffered, Unbuffered, and ECC Markings
Printed labels near the edge connector or on the module’s sticker usually spell out whether a stick is buffered, unbuffered, or ECC-capable, though the abbreviations take practice to recognize.
Unbuffered DIMMs, marked UDIMM, are the standard choice for desktops and laptops, sending signals directly between the memory chips and the controller.
Registered DIMMs, marked RDIMM, add a buffering chip that server platforms rely on for stability across large amounts of installed memory.
ECC modules add extra chips beyond the standard data width, giving the system a way to detect and correct memory errors automatically, a feature common in servers and workstations but rare in consumer desktops.
DDR Generation Comparison at a Glance
Lining up the core identifying traits side by side makes the generational differences easier to memorize for a lab practical or exam.
- DDR3: 240-pin DIMM or 204-pin SO-DIMM, notch offset left, 1.5V
- DDR4: 288-pin DIMM or 260-pin SO-DIMM, notch near center, 1.2V
- DDR5: 288-pin DIMM or 262-pin SO-DIMM, notch shifted further, 1.1V, onboard PMIC visible
Each generation’s slot is physically incompatible with the others, which is a deliberate design choice meant to prevent a technician from forcing the wrong stick into a board.
Desktop DIMM vs Laptop SO-DIMM vs Server RDIMM
System type narrows down the likely module family before a technician even looks at pin count, since form factor tracks closely with the kind of machine a stick came from.
A desktop pulled apart on a bench almost always holds a full-size DIMM, given the extra internal space compared to a laptop chassis.
A laptop or small form factor system almost always uses a SO-DIMM instead, since the shorter module fits the tighter internal clearance those systems are built around.
Server and workstation hardware frequently uses RDIMM or ECC modules rather than standard unbuffered sticks, since those platforms prioritize stability and error correction over the last bit of raw speed.
Software Tools for Confirming Memory Type
Physical inspection is the required skill for this lab, but on a running system, software tools offer a fast way to double-check a manual identification.
Built-in system tools can usually report installed memory type, speed, and capacity without opening the case at all, useful for confirming a read before pulling anything physically.
Third-party diagnostic utilities go further, often reporting manufacturer, timing details, and voltage that aren’t visible from a quick glance at the module itself.
These tools occasionally fail to read memory type correctly on older systems or unusual motherboards, which is exactly the situation where physical identification skills become necessary instead of optional.
Common Mistakes When Identifying Memory Modules
A handful of mixups show up repeatedly in labs and real repair situations, and most trace back to relying on just one identifying clue instead of several together.
- Assuming pin count alone confirms generation without checking notch position
- Confusing a SO-DIMM for a DIMM based on a quick glance rather than a measurement
- Missing the PMIC chip that distinguishes DDR5 from DDR4 at a glance
- Forcing a module into a slot instead of stopping at resistance
Cross-checking two or three markers together, rather than trusting a single trait, is what prevents these mistakes during a timed lab or a real repair job.
Practicing Memory Identification for the Lab
Working through a stack of retired modules, mixing generations and form factors, builds the kind of fast recognition a timed practical actually tests.
Starting with notch position and pin count, then confirming with voltage or PMIC presence, mirrors the layered check a real technician runs before ever touching a slot.
Keeping a simple reference chart nearby during early practice, then testing recall without it, is a reliable way to move identification from a lookup task to a memorized skill.
Building Confidence Identifying Any Memory Module
Memory identification comes down to reading a handful of physical clues together: notch position, pin count, module length, and voltage-related hardware like the DDR5 PMIC.
No single clue tells the whole story on its own, but stacking two or three together turns a guess into a confident, correct identification almost every time.
That layered habit, checking multiple markers instead of trusting one, is the same skill that keeps a real repair job from turning into a damaged board or a mismatched upgrade.
