Walking into a hardware lab and staring at a table full of cables, adapters, and mystery boxes can feel a bit like a pop quiz you didn’t study for.
That’s the moment this exercise is built around. “Identifying network technologies” means looking at equipment, cables, or signals and correctly naming the networking technology they belong to based on what you can see, measure, or test.
For students and new techs, this skill matters because networks aren’t built from one single type of technology. A single office might run copper Ethernet at the desks, Wi-Fi in the conference room, and a fiber WAN link connecting the whole building to the internet.
If you can’t tell these apart at a glance, troubleshooting becomes guesswork. A tech who mistakes a coaxial line for a phone line, or confuses a Wi-Fi 6 router with an older Wi-Fi 4 unit, ends up wasting time chasing the wrong fix.
That’s the point of this lab. It trains your eye and instincts so that, out in the field, you can look at a connector, a signal reading, or a label and know almost instantly what you’re dealing with. This guide walks through every category you’ll be tested on, from physical cables to wireless standards to the broadband links that carry traffic across cities.
Advanced Hardware Lab 7-5: Identify Network Technologies
The core task in this lab is simple to state but takes practice to master: look at a piece of network hardware and name the exact technology behind it, using only the physical or signal clues available to you.
Every network technology leaves behind identifying traits. A cable has a shape, a connector, and sometimes a printed label. A wireless signal has a frequency and a naming standard. A WAN link has a delivery method tied to the service provider bringing it into the building.
The general approach taught in this lab follows three steps. First, figure out which broad category you’re looking at (wired, wireless, or WAN). Second, narrow it down using the specific physical or technical clues unique to that category. Third, confirm your guess with a tool, a label, or a known reference chart before writing down your final answer.
This matters because the clues for one category rarely apply to another. A frequency band tells you nothing about a copper cable, and a connector shape won’t help you identify a wireless standard. The sections below break down exactly what to look for in each case.

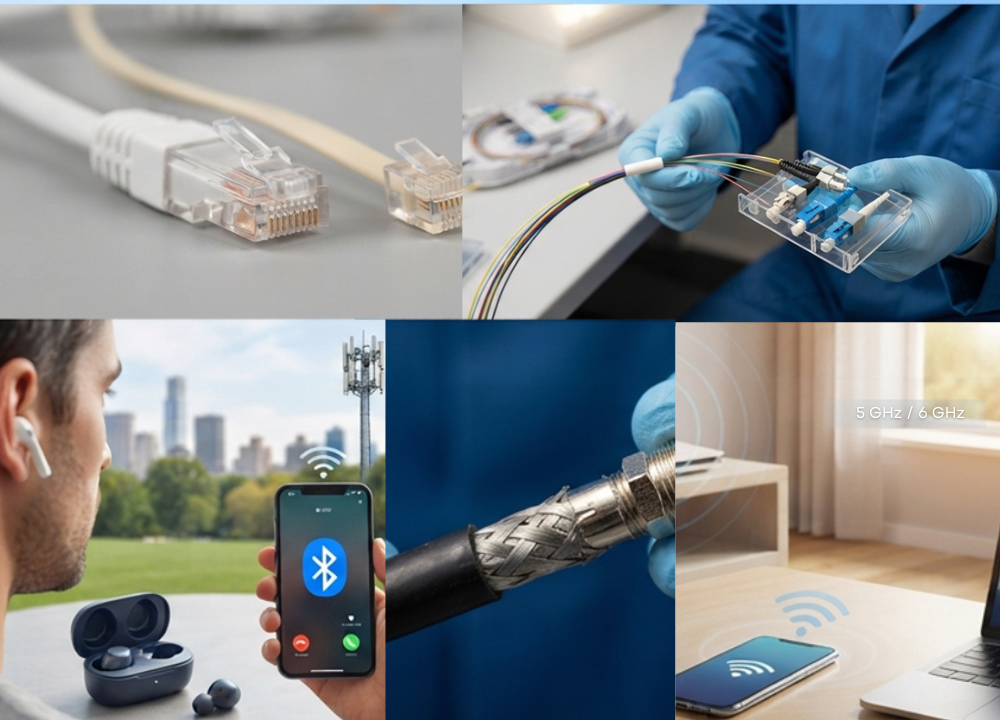

Identifying Wired Network Technologies
Wired technologies are the easiest category to identify once you know what to check, because everything comes down to something you can physically see and touch. The cable jacket, the connector, and the core material all give away what you’re holding.

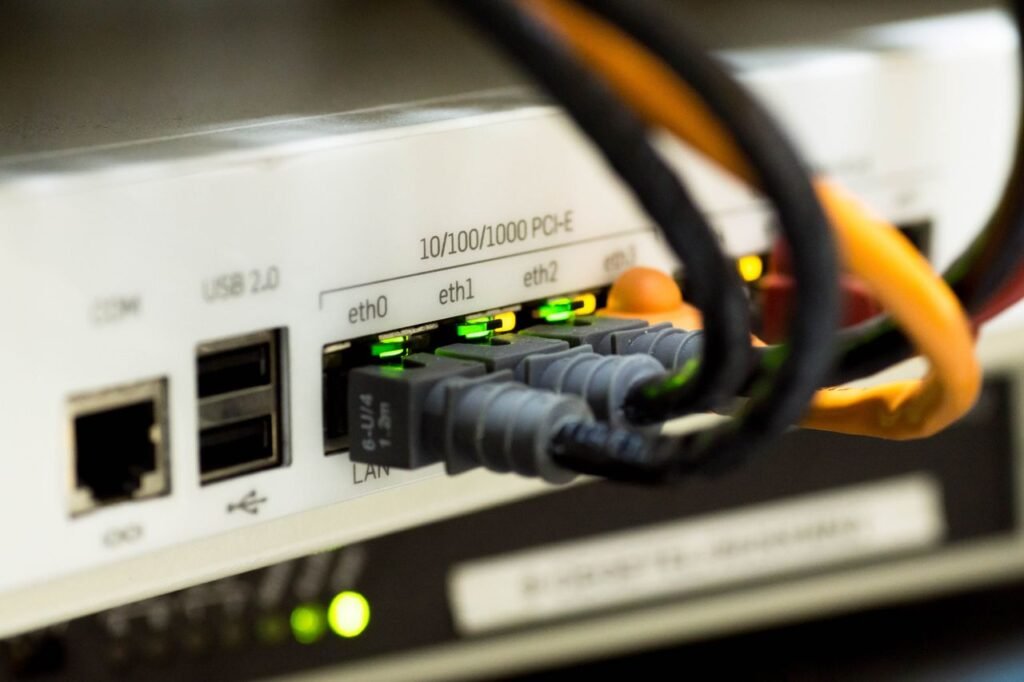

Twisted pair cabling, the kind used for most Ethernet, ends in an RJ45 connector. According to CompTIA training materials, this is the most common twisted-pair connector, with eight pins, designed specifically to carry Ethernet traffic, which clearly sets it apart from the smaller phone-line connector many people mistake it for.
That smaller connector is the RJ11, still used in older phone lines. It has six physical positions, though only two carry an actual signal, and it links analog telephone equipment rather than data networks. Side by side, the size gap between RJ11 and RJ45 is obvious once you’ve seen both.
Fiber optic cable looks and feels nothing like copper. It carries light instead of electricity, and its connectors come in a few common shapes worth memorizing.
Spotting the Right Fiber Connector Every Time
Straight Tip connectors, known as ST, use a round barrel that twists and locks in place much like an old coaxial fitting. Subscriber Connectors, or SC, snap straight in with a push and click, and their ferrule sits mostly hidden inside the housing.
Local Connectors, or LC, are smaller versions that latch shut the same way an Ethernet plug does, which makes them a favorite in tight equipment racks. Field techs often prefer LC connectors specifically because their compact size makes crowded patch panels easier to manage.
Coaxial cable rounds out the wired category, and it stands apart because of its single thick center conductor wrapped in shielding. This type of cable traditionally carried cable television signals and cable modem connections, and its screw-on F-type connector is unmistakable once you’ve handled one.
Identifying Wireless Network Technologies
Wireless technologies can’t be identified by touch, since there’s no physical cable to inspect. Instead, you rely on the standard name, the frequency band, and the general range and behavior of the signal.
Wi-Fi is labeled by generation number today rather than by its older, harder-to-remember technical name. The Wi-Fi Alliance shifted to this simpler numbering system in 2018 so that ordinary users and technicians alike could tell at a glance which generation a device supports.
Each generation ties back to an underlying IEEE 802.11 standard. Wi-Fi 6 corresponds to 802.11ax, Wi-Fi 6E extends that same standard into the newly opened 6 GHz band, and Wi-Fi 7 corresponds to 802.11be, which brings wider channels and faster peak speeds.
Reading Frequency Bands Like a Fingerprint
The 2.4 GHz band travels farther but moves data more slowly, and it shares space with household devices like microwaves, which causes frequent interference. The 5 GHz band trades some range for noticeably higher throughput and a cleaner signal environment.
The newer 6 GHz band, used only by Wi-Fi 6E and Wi-Fi 7 devices, offers the least congestion of the three because so few devices currently use it. If you spot a device listing 6 GHz support, you know immediately it belongs to one of these two newer standards.
Bluetooth also lives in the wireless category, but it behaves very differently from Wi-Fi. It operates over a much shorter range, links devices in pairs rather than broadcasting to a whole network, and typically shows up connecting peripherals like keyboards, mice, or headsets rather than carrying network traffic.
Cellular technology rounds out this category, and it’s identified by its own generation labels, the familiar 4G and 5G markers. Unlike Wi-Fi, cellular signals rely on towers spaced across a wide geographic area rather than a single access point sitting a few meters away.
Identifying WAN and Broadband Technologies
WAN technologies connect networks across long distances, and they’re identified by service type rather than by the cable sitting on a desk. This is the category students most often confuse with LAN-level wired technologies, since some WAN links still arrive over copper or coaxial cable.
DSL delivers internet service over the same copper phone lines already used for voice calls, splitting the line so both data and phone signals travel simultaneously. You can usually identify a DSL setup by the presence of a splitter box or filter attached near the phone jack.
Cable broadband, by contrast, arrives over coaxial cable and uses the same infrastructure that once carried only television signals. A cable modem connected to a coax line, rather than a phone line, is the clearest giveaway that you’re looking at this delivery method.
Fiber WAN service pushes data over long stretches of fiber optic cable straight into a building, often terminating at an Optical Network Terminal before switching over to standard Ethernet inside. This setup usually delivers far higher speeds than either DSL or cable broadband, and the presence of that terminal box is a strong identifying clue.
Satellite internet stands apart from every other WAN type because it needs no ground cable at all between the provider and the customer. A dish mounted outdoors, aimed at a fixed point in the sky, is the single clearest sign you’re dealing with a satellite connection rather than any wired alternative.
Common Tools Used to Identify Network Technologies
A hardware lab rarely expects you to identify everything by eyesight alone. Several tools exist specifically to confirm or reveal what technology sits behind a cable, port, or signal.
Cable testers check continuity and wiring order inside twisted pair cable, instantly flagging whether a run is wired correctly and which standard it follows. These handheld devices are often the first tool a tech reaches for when a connection isn’t behaving as expected.
Port scanners and network discovery software identify devices already connected to a network, showing their type, manufacturer, and sometimes even the specific hardware model in use. This software-based approach works well when physical inspection isn’t possible or practical.
- Cable testers confirm wiring standard and continuity on copper runs.
- Toner probes trace a specific cable through walls or bundles.
- Optical power meters measure signal strength on fiber links.
- Wireless scanners detect nearby SSIDs, bands, and signal strength.
- Device labels and manufacturer stickers list model numbers and specs.
Beyond dedicated tools, plain visual inspection remains one of the most reliable methods available. Manufacturer labels printed directly on cables and connectors often state the category or standard outright, saving you from having to guess at all.
Common Mistakes When Identifying Network Technologies
Even experienced students slip up on this lab, usually because certain technologies look deceptively similar at first glance. Knowing the common traps ahead of time saves real frustration during the exercise.
Confusing RJ11 and RJ45 connectors ranks among the most frequent errors, especially for anyone new to hardware work. The size difference is small enough that a rushed glance can easily miss it, so a careful side-by-side comparison always beats guessing from memory.
Fiber connectors trip up plenty of students too, since ST, SC, and LC all serve the same general purpose but attach in noticeably different ways. Mixing these up on paper is common, though handling a few real samples usually fixes the confusion for good.
- Mistaking RJ11 phone jacks for RJ45 Ethernet connectors.
- Confusing SC push-in fiber connectors with twist-lock ST connectors.
- Assuming any coaxial cable belongs to cable broadband rather than older cable television wiring.
- Mixing up Wi-Fi 5 and Wi-Fi 6 devices without checking the actual frequency bands supported.
- Labeling a DSL connection as cable broadband simply because both terms sound similar.
Wireless standards cause a different kind of mistake. Students sometimes assume a device supports Wi-Fi 6E just because it mentions “Wi-Fi 6,” without noticing that the 6E designation specifically requires 6 GHz band support that standard Wi-Fi 6 hardware doesn’t include.
WAN technologies get muddled for a similar reason. Because DSL, cable broadband, and fiber WAN can all use familiar-looking cabling near the customer’s end, students sometimes name the wrong delivery method simply because they didn’t trace the connection back to its actual source.
Getting Comfortable Recognizing Every Network Technology at a Glance
Mastering this lab really comes down to three separate skill sets working together. Wired identification relies on touch and sight, wireless identification relies on standards and frequency, and WAN identification relies on tracing the delivery method back to its source.
Practicing with real hardware speeds up this process far faster than memorizing charts alone. Handling an actual LC connector next to an SC connector, or comparing a real RJ11 against an RJ45, builds a kind of muscle memory that sticks long after the lab ends.
This skill also feeds directly into broader hardware and networking competence. A technician who can instantly recognize what they’re working with spends less time troubleshooting blind and more time solving the actual problem in front of them, whether that’s a dropped Wi-Fi signal, a miswired patch panel, or a fiber WAN link that needs tracing back to its source. Groups like the Institute of Electrical and Electronics Engineers, which standardizes the 802.11 family that defines how wireless devices transmit and receive data, keep publishing updated standards, so this is a skill that keeps evolving rather than one you learn once and set aside. Staying sharp on it and revisiting cable types, wireless generations, and WAN delivery methods every so often keeps that recognition instinct fresh for whatever hardware shows up next.
